Free Sample Heat Transfer Thermal Silicone Pad For High Speed Mass Storage Drives
Product descriptions
TIF®800Q series of thermal interface materials is specifically designed to fill air gaps between heat-generating components and heat sinks or metal baseplates. It offers excellent compliance, alowing it to conform fightly to heat sources with varying shapes and height dferences. Even in confined or iregular spaces,it maintains stable thermal conductivity, enabling efficient heat transfer from discrete components or the entire PCB to the metal housing or heat sink. This significantly improves the heat dissipation efficiency of electronic components, thereby enhancing operational stability and extending device lifespan.
Features:
> Excellent thermal conductivity 13.0W/mK
> Naturally tacky needing no further adhesive coating
> High compliance adapts to various pressure application environments
> Available in different thickness options
Applications:
> Heat dissipation structure for radiators
> Telecommunication equipment
> Automotive electronics
> Battery packs for electric vehicles
> LED drivers and lamps
| Typical Properties of TIF®800Q Series |
| Property |
Value |
Test method |
| Color |
Gray |
Visual |
| Construction & Compostion |
Ceramic filled silicone elastomer |
****** |
| Density(g/cm³) |
3.5 |
ASTM D792 |
| Thickness Range(inch/mm) |
0.010~0.020 |
0.030~0.200 |
ASTM D374 |
| 0.25~0.50 |
0.75~5.00 |
| Hardness (Shroe 00) |
65 |
45 |
ASTM 2240 |
| Recommended Operating Temperature |
-40 to 200℃ |
****** |
| Breakdown Voltage(V/mm) |
≥5500 |
ASTM D149 |
| Dielectric Constant@ 1MHz |
8.0 |
ASTM D150 |
| Volume Resistivity |
＞1.0X1012 Ohm-meter |
ASTM D257 |
| Flame rating |
V-0 |
UL 94 (E331100) |
| Thermal conductivity |
13.0 W/m-K |
ASTM D5470 |
| 13.0 W/m-K |
ISO22007 |
Product Specifications
Standard Thickness: 0.010" (0.25 mm)~0.200" (5.00 mm) with increments of 0.010" (0.25 mm)
Standard Size: 16"X16" (406 mmX406 mm)
The TIF® series is available in customshapes and various forms.
For other thicknesses or more information,please contact us.
Packaging Details & Lead time
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
Company Profile
VIETNAM ZIITEK TECHNOLOGY COMPANY LIMITED. is a professional manufacturer of thermal interface materials with many years of industry experience. Integrating R&D, production, sales, and technical services, the company offers a comprehensive product line covering thermally conductive silicone pads, thermal conductive grease/paste,thermally conductive graphite sheets, phase change materials, thermally conductive plastics, thermal gel , silicone foam, silicone-free thermal pads etc.We adhere to strict quality standards and provide customized solutions based on customer requirements. Our products are widely used in electronics, new energy, telecommunications, industrial control, and other fields, earning the trust of customers both domestically and internationally through our proven capabilities.
Certifications:
ISO9001:2015
ISO14001: 2004 IATF16949:2016
IECQ QC 080000:2017
UL
Why Choose us ?
1.Our value message is'' Do it right the First time, total quality control''.
2.Our core competencies is thermal conductive interface materials
3.Competitive advantage products.
4.Condidentiality agreement Bussiness Secrect Contract
5.Free sample offer
6.Quality assurance contrac.
|
|

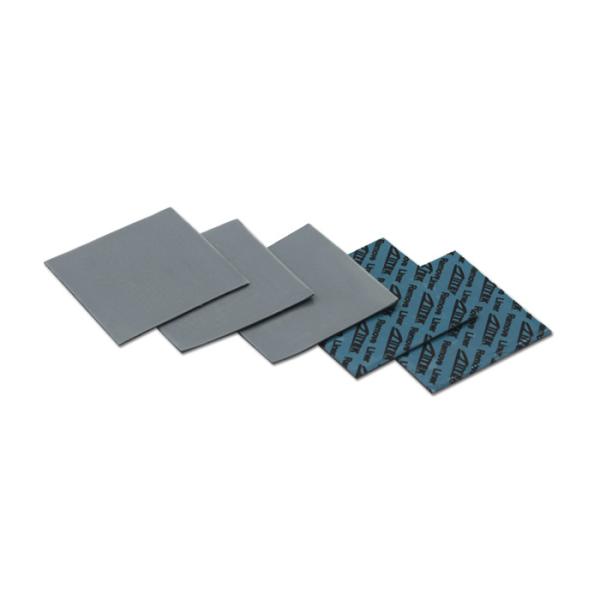

TIF800Q Free Sample Heat Transfer Thermal Silicone Pad For High Speed Mass Storage Drives Images
|
