TIF®100-85-11US Silicone Based Thermal Interface Material 8.5W Soft Thermal Pad For Electric Vehicle
Product descriptions
The TIF®100-85-11US Series is a thermal pad designed specifically for environments sensitive to extreme mechanical stress. It combines excellent thermal conductivity with an almost fluid-like extreme softness, ensuring perfect contact interface fillng even under ultra-low mounting pressure,completely eliminating air thermal resistance,and providing superior heat dissipation solutions and physical protection for the most delicate electronic components.
Features
> Excellent thermal conductivity
> Super soft and highly compliant
> Self-adhesive without the need for additional surface adhesives
> High insulation performance
Applications
> Power tools
> Network communication products
> Electric vehicle batteries
> Computer CPU/GPU Cooling
> New energy vehicle power systems
> Motherboard chip
> Radiator
> AI Processors AI Servers
> Notebook
> Power supply
> Heat pipe thermal solutions
| Typical Properties of TIF®100-85-11US Series |
| Property |
Value |
Test method |
| Color |
Dark Gray |
Visual |
| Construction & Compostion |
Ceramic filled silicone elastomer |
****** |
| Density(g/cm³) |
3.5 |
ASTM D792 |
| Thickness Range(inch/mm) |
0.012~0.020 |
0.030~0.200 |
ASTM D374 |
| (0.30~0.50) |
(0.75~5.00) |
| Hardness |
35 Shore 00 |
20 Shore 00 |
ASTM 2240 |
| Continuos Use Temp |
-40 to 200℃ |
****** |
| Breakdown Voltage(V/mm) |
≥ 5500 |
ASTM D149 |
| Dielectric Constant |
6.0 MHz |
ASTM D150 |
| Volume Resistivity |
＞1.0X1012 Ohm-meter |
ASTM D257 |
| Thermal Conductivity (W/m-K) |
8.5 |
ASTM D5470 |
| 8.5 |
ISO22007 |
| Fire rating |
V-0 |
UL 94 (E331100) |
Product Specifications
Standard Thickness: 0.012" (0.30 mm)～ 0.200" (5.00 mm) with increments of 0.010" (0.25 mm).
Standard Size: 16"×16" (406 mm ×406 mm).
Component Codes:
Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment),
DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).
The TIF® series is available in custom shapes and various forms.
For other thicknesses or more information, please contact us.
Packaging Details & Lead time
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
Independent R&D team
Q: How do I place an order?
A:1. Click the "Sent messages" button to continue with the process.
2. Fill out the message form by entering a subject line, and message to us.
This message should include any questions you might have about the products as well as your purchase requests.
3. Click the "Send" button when you are finished to complete the process and send your message to us.
4. We will reply you as soon as possible with Email or online.
FAQ:
Q: What thermal conductivity test method was used to achieve the values given on the data sheets?
A: A test fixture is utilized that meets the specifications outlined in ASTM D5470.
Q: How do I request customized samples?
A: To request samples, you can leave us message on website, or just contact us by send email or call us.
Q: What's the thermal conductivity test method given on the data sheet ?
A: All the data in the sheet are actual tested.Hot Disk and ASTM D5470 are utilized to test the thermal conductivity.
|
|

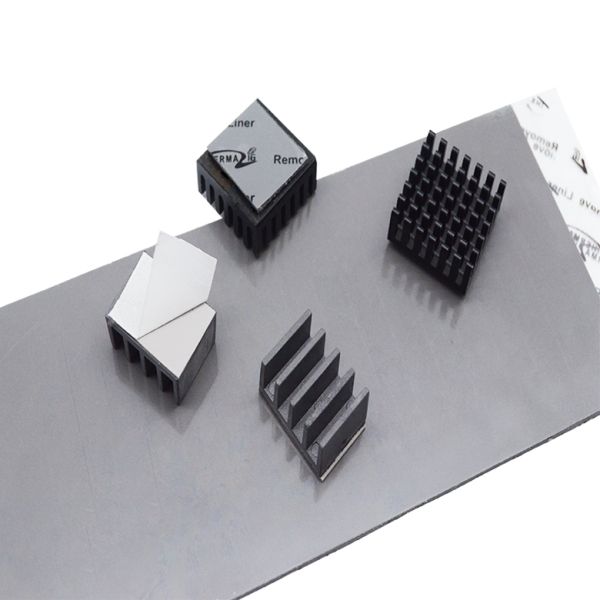

TIF100-85-11US Silicone Based Thermal Interface Material 8.5W Soft Thermal Pad For Electric Vehicle Images
|
