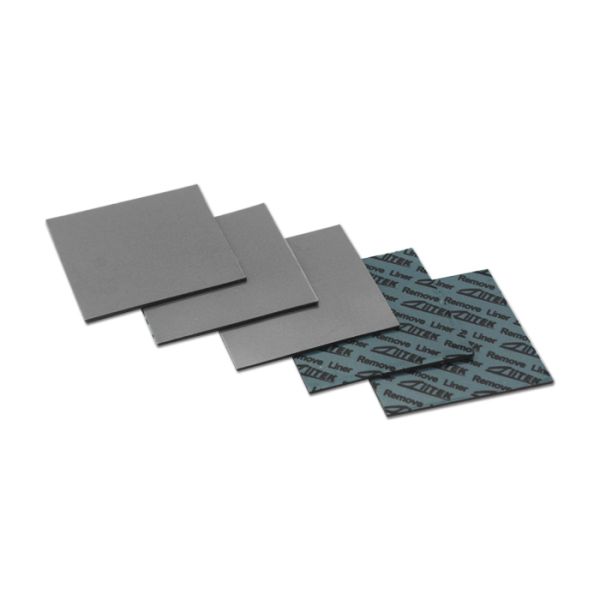

TIF100-30-11E Thermal Pads Pliable Durable Gray Electric Conductive Silicone Sheet For Electronics

Name: TIF1003011E Thermal Pads Pliable Durable Gray Electric Conductive Silicone Sheet For Electronics
Brand: Ziitek
Price: 0.1 USD

Buy cheap TIF100-30-11E Thermal Pads Pliable Durable Gray Electric Conductive Silicone Sheet For Electronics product

Brand Name : Ziitek

Model Number : TIF100-30-11E

Certification : UL and RoHs

Place of Origin : Vietnam

MOQ : 1000pcs

Price : 0.1-10 USD/PCS

Payment Terms : T/T

Supply Ability : 100000pcs/day

Delivery Time : 3-5 work days

Packaging Details : 24*13*12cm cartons

Products name : Thermal Pads Pliable Durable Gray Electric Conductive Silicone Sheet For Electronics

Thermal Conductivity : 3.0W/mK

Application : Electronics cooling

Density : 3.0g/cc

Keywords : Thermal Pads

Color : Dark Gray

Hardness : 65/35 Shore 00

Dielectric Breakdown Voltage : >5500VAC

Flame Rating : UL 94 V-0

Contact Now

TIF100-30-11E Thermal Pads Pliable Durable Gray Electric Conductive Silicone Sheet For Electronics

The TIF^®100-30-11E Series is a well-balanced,general-purpose thermal pad.It offers good thermal conductivity_and moderate hardness. This balanced design provides both excellent surface conformity and superior ease of use,making it capable of effectively transferring heat and providing basic physical protection for a wide range of electronic components.It is an ideal choice for addressing medium to high power heat dissipation needs,achieving the best balance between cost and performance.

Features:

> Good thermal conductive: 3.0W/mK
> Moldability for complex parts
> Soft and compressible for low stress applications
> Naturally tacky needing no further adhesive coating
> Available in varies thicknesses
> Broad range of hardnesses available

Applications:

> Display card
> Mainboard/mother board
> Notebook
> Power supply
> Heat pipe thermal solutions
> Memory Modules
> Mass storage devices
> Automotive electronics
> Set top boxes
> Audio and video components
> CD-Rom, DVD-Rom cooling
> LED Power Supply
> LED Controller
> LED Ceilinglamp

Typical Properties of TIF^®100-30-11E Series
Property	Value		Test method
Color	Dark Gray		Visual
Construction & Compostion	Ceramic filled silicone elastomer		******
Density(g/cm³)	3.0		ASTM D792
Thickness Range(inch/mm)	0.010~0.030	0.030~0.200	ASTM D374
	(0.25~0.50)	(0.75~5.0)
Hardness	65 Shore 00	35 Shore 00	ASTM 2240
Recommended Operating Temperature	-40 to 200℃		******
Breakdown Voltage(V/mm)	≥5500		ASTM D149
Dielectric Constant	7.0 MHz		ASTM D150
Volume Resistivity	＞1.0X10¹² Ohm-meter		ASTM D257
Flame rating	V-0		UL 94 (E331100)
Thermal conductivity	3.0 W/m-K		ASTM D5470
	3.0 W/m-K		ISO22007

Product Specifications
Standard Thickness: 0.010" (0.25 mm)-0.200" (5.00 mm) with increments of 0.010" (0.25 mm)
Standard Size: 16"×16" (406 mmX406 mm)

Component Codes:
Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment),
DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).

The TIF^® series is available in custom shapes and various forms.
For other thicknesses or more information,please contact us.

TIF100-30-11E Thermal Pads Pliable Durable Gray Electric Conductive Silicone Sheet For Electronics

Company Profile

Ziitek company is a manufacturer of thermal conductive gap fillers, low melting point thermal interface materials, thermal conductive insulators, thermally conductive tapes, electrically & thermally conductive Interface pads and thermal grease,Thermal Conductive plastic,Silicone Rubber,Silicone Foams,Phase Changing Materials products, with well-equipped testing equipment and strong technical force.

Why Choose us ?

1.Our value message is'' Do it right the First time, total quality control''.

2.Our core competencies is thermal conductive interface materials.

3.Competitive advantage products.

4.Condidentiality agreement Bussiness Secrect Contract.

5.Free sample offer.

6.Quality assurance contract.

TIF100-30-11E Thermal Pads Pliable Durable Gray Electric Conductive Silicone Sheet For Electronics Images
