Low Thermal Resistance Phase Change Thermal Paste For Server And Data Center Equipment
Products description
TIC®800R-SP is a paste like thermal phase change material that can undergo phase transition at operating temperature, fully filling_the micro voids at the contact interface, thereby significantly improving thermal conductivity eficiency. The material adopts a sturdy polymer phase change structure, exhibiting excellent wetting properties within a typical operating temperature range,and can form close contact with various substrate surfaces, achieving extremely low surface contact resistance. The product has undergone rigorous long-term reliability testing and can maintain stable thermal conductivity and physical properties under high temperature, high humidity, temperature_cycling and other working_conditions, fully meeting the strict requirements of high-performance electronic devices for long-term stability.
Features
>Excellent thermal conductivity
>Excellent surface wettability
>Outstanding operability and repairability
>Low thermal resistance
>No need for heating and curing,suitable for automated dispensing processes
Applications
>Automotive Electronics and New Energy Electronic Control System
>IT/Enterprise
>Power Semiconductor Devices and Modules
>Consumer Electronics
>Server and data center equipment
| Typical Properties of TIC®800R-SP Series |
| Product Name | Value | Test Method |
| Color | Gray | Visual |
| Viscosity(mPa·s) | 38000 | GB/T 10247 |
| Density(g/cm³) | 2.6 | ASTM D792 |
| Recommended Operating Temperature (℃) | -40~125 | - |
| Phase ChangeTemperature (℃) | 50~60 | - |
| Thermal Conductivity (W/mK)(Desolvation) | 8.5 | ASTM D5470 |
| Thermal Impedance (℃·in²/W) @10 psi | 0.03 | ASTM D5470 |
| Thermal Impedance (℃·in²/W) @50 psi | 0.02 | ASTM D5470 |
| Shelf Life (Month) @25℃ | 12 (Unopened) | - |
Product Specifications
30ml/pcs,50ml/pcs
For product information of different specifications, please contact our company.
If you would like to know more product information about thermal conductive materials,please visit our official website.
Company Profile
Ziitek company is a high-tech enterprise which dedicated to the R&D, manufacture and sales of the thermal interface materials (TIMs). We have rich experiences in this field which can support you the latest, most effective and one -step thermal management solutions. We have many advanced production equipments,full test equipments and fully automatic coating production lines which can support the production for high performance thermal silicone pad, thermal graphite sheet/ film, thermal double-sided tape, thermal insulation pad, thermal ceramic pad, phase change material, thermal grease etc. UL94 V-0, SGS and ROHS are compliant.
Thermal gap pad
Thermal graphite sheet/film
Thermal double-sided tape
Thermal insulation pad
Thermal grease
Phase change material
Thermal gel
All products are compliant with UL94 V-0, SGS and ROHS standards.
Certifications: ISO9001:2015, ISO14001:2004, IATF16949:2016, IECQ QC 080000:2017, UL
FAQ:
Q: Are you trading company or manufacturer ?
A: We are manufacturer in Vietnam.
Q: How long is your delivery time?
A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra cost?
A: Yes, we could offer samples free of charge.
|
|

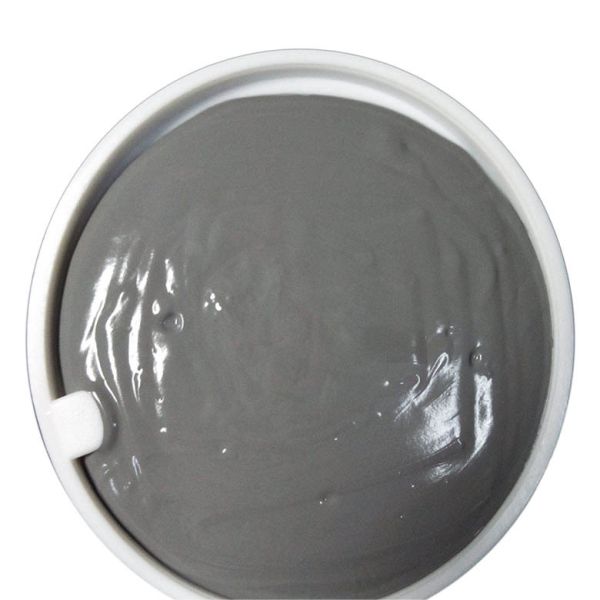

TIC800R-SP Low Thermal Resistance Phase Change Thermal Paste For Server And Data Center Equipment Images
|
