TIS100-08-01F Thermally Insulation Materials Heat Transfer With Soft CompressibleTear-Resistant Silicone Thermal Interface Materials

Name: TIS1000801F Thermally Insulation Materials Heat Transfer With Soft CompressibleTearResistant Silicone Thermal Interface Materials
Brand: Ziitek
Price: 0.1 USD

Buy cheap TIS100-08-01F Thermally Insulation Materials Heat Transfer With Soft CompressibleTear-Resistant Silicone Thermal Interface Materials product

MOQ : 1000pcs

Delivery Time : 3-5 work days

Thickness(inch/mm) : 0.12"/0.30

Breakdown Voltage(V/mm) : ≥5000

Payment Terms : T/T

Desity : 1.8 g/cm³

Model Number : TIS100-08-01F

Keywords : Thermally Insulation Materials

Brand Name : Ziitek

Products name : Thermally Insulation Materials Heat Transfer With Soft CompressibleTear-Resistant Silicone Thermal Interface Materials

Price : 0.1-10 USD/PCS

Construction & Compostion : Ceramic Filled Silicone Elastomer/Fiberglass

Supply Ability : 100000pcs/day

Hardness (Shore 00) : 60

Certification : UL and RoHs

Thermal Conductivity : 0.8W/mk

Place of Origin : Vietnam

Color : Black

Packaging Details : 24*13*12cm cartons

Contact Now

TIS^®100-08-01F Thermally Insulation Materials Heat Transfer With Soft CompressibleTear-Resistant Silicone Thermal Interface Materials

Products description

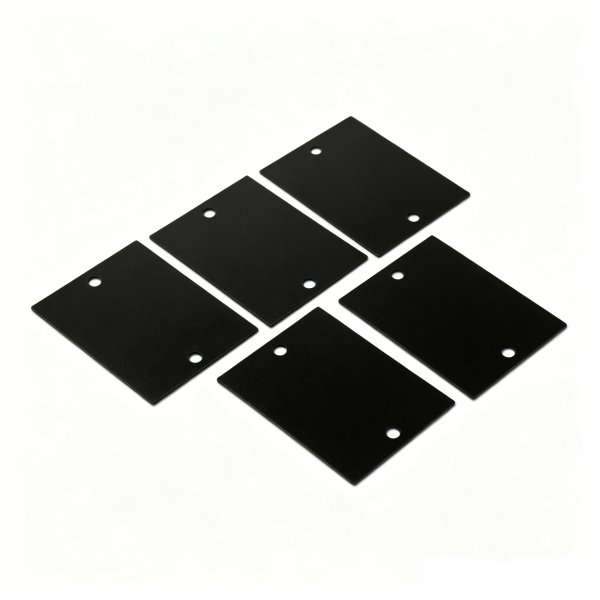

The TIS^®100-08-01F Series is a high-efficiency thermal conductive insulating product. lt incorporates insulating silicone substrates into thermally conductive materials to achieve both insulation and heat conduction. At the same time, the glass fibers provide excellent tear and puncture resistance. The product is non-toxic and environmentally friendly, has flame-retardant properties, and is mainly used for isolating power supplies and heat sinks.

TIS100-08-01F Thermally Insulation Materials Heat Transfer With Soft CompressibleTear-Resistant Silicone Thermal Interface Materials

Features:

> Surface is relatively soft and has good heat conductivity
> Good dielectric strength
> Low thermal resistance with high voltage isolation
> Resistant to tears and punctures

Applications:

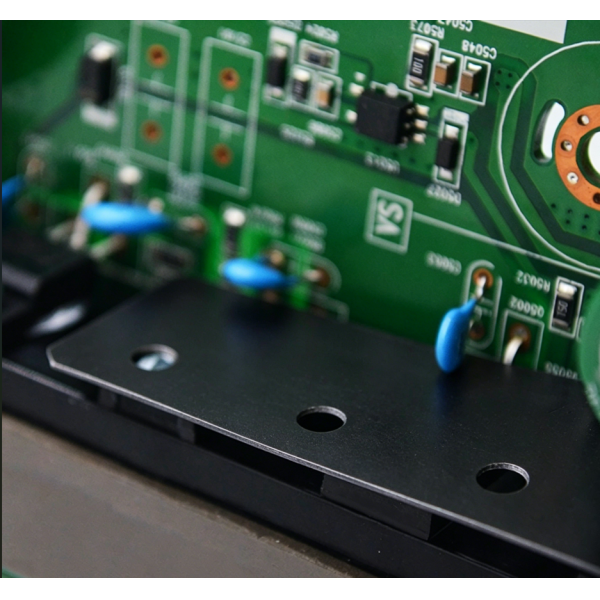

> Car battery and power supply
> Power semiconductors
> Audio and video components
> Motor controllers

Typical Properties of TIS^®100-08-01F Series
Product Model	TIS112-08-01F	TIS120-08-01F	Test method
Color	Black		Visual
Construction	Ceramic filled silicone elastomer/ Fiberglass		******
Density(g/cm³)	1.8		ASTM D792
Thickness Range(inch/mm)	0.012	0.020	ASTM D374
	0.30	0.50
Hardness (Shore 00)	60		ASTM 2240
Tensile Strength (Mpa)	21		ASTM D412
Recommended Operating Temperature	-40 to 200℃		******
Breakdown Voltage(V/mm)	≥5000		ASTM D149
Dielectric Constant @1MHz	6.0		ASTM D150
Volume Resistivity	＞1.0X1012 Ohm-meter		ASTM D257
Flame rating	V-0		UL 94 (E331100)
Thermal conductivity	0.8 W/m-K		ASTM D5470
	0.8 W/m-K		ISO22007

Product Specifications

Standard Thickness: 0.012" (0.30 mm),0.020" (0.50 mm)
Standard Size: 12"X160" (304 mmX48.7M)

TIS100-08-01F Thermally Insulation Materials Heat Transfer With Soft CompressibleTear-Resistant Silicone Thermal Interface Materials

Packaging Details & Lead time

The packaging of Thermal Insulation Materials

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized

Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated

Company profile

Ziitek company is a high-tech enterprise dedicated to the R&D, manufacture and sales of thermal interface materials (TIMs). With rich experience in this field, we provide the latest, most effective one-step thermal management solutions. Our facility includes advanced production equipment, full test equipment, and fully automatic coating production lines capable of manufacturing high performance thermal products including:

Thermal gap pad

Thermal graphite sheet/film

Thermal double-sided tape

Thermal insulation pad

Thermal grease

Phase change material

Thermal gel

All products are compliant with UL94 V-0, SGS and ROHS standards.

Certifications: ISO9001:2015, ISO14001:2004, IATF16949:2016, IECQ QC 080000:2017, UL

Why Choose us ?

1.Our value message is'' Do it right the First time, total quality control''.

2.Our core competencies is thermal conductive interface materials.

3.Competitive advantage products.

4.Condidentiality agreement Bussiness Secrect Contract.

5.Free sample offer.

6.Quality assurance contract.

TIS100-08-01F Thermally Insulation Materials Heat Transfer With Soft CompressibleTear-Resistant Silicone Thermal Interface Materials Images
